- 15” Industrial Compact Size Panel PC
- Stainless-Steel Bezel
- Fully Enclosed Touch Screen with Fanless Design
- DC 9~36V Wide-Ranging Power Input
- Intel Celeron N2930 CPU built-in
- Up to 8GB RAM
- Fully IP66/IP69K Compliant Panel
Fully IP rated Panel PCs, Industrial, Panel PCs
ViTAM-815PRGH_V1.4.pdf
ViTAM-815/P
These 15″ fully-enclosed, stainless-steel, IP66/IP69K rated panel PCs enable high pressure steam jet cleaning. Employing the Intel Celeron N2930 CPU, with vandal-proof 7H hardened glass, these are perfect for the food and beverage industry.
Quick Spec
| Display Size | 15'' |
|---|---|
| Processor | Intel Celeron N2930 |
| RAM | 4GB – 8GB |
| IP Rating | Fully IP66/IP69K |
| Touchscreen | Projected Capacitive, Resistive |
| OS Support | Windows 10 Pro/IoT, Linux, Ubuntu |
| Mounting Type | VESA/YOKE |
Datasheet
ViTAM-815PRGH_V1.4.pdf
System
| CPU | Onboard Intel Celeron N2930 Processor |
| Memory | Onboard 4GB DDR3L SDRAM |
I/O Port
| USB | 1 x M12 8-pin for USB 2.0 with waterproof cover and chain |
| Serial/Parallel | 1 x M12 8-pin COM1, RS-232/422/485, default RS-232, with waterproof cover and chain |
| LAN | 1 x M12 8-pin for LAN with waterproof cover and chain |
| Power Connector |
|
| Option |
|
Storage
| HDD | 1 x 2.5″ SATA3 HDD |
Expansion
| Expansion slot | 1 x miniPCIe slot for WIFI/BT(optional), 4G/LTE(optional) |
| RFID Module | RFID module design on the front side(optional) |
| Display | based on standard display, high brightness option see datasheet |
| Display Type | 15″ TFT-LCD |
| Max. Resolution | 1024 x 768 |
Touch Screen
| Type | Projected Capacitive / Resistive / Glass |
| Light Transmission (%) | Resistive over 80% PCAP over 90% |
Power
| Power Input | DC 9~36V |

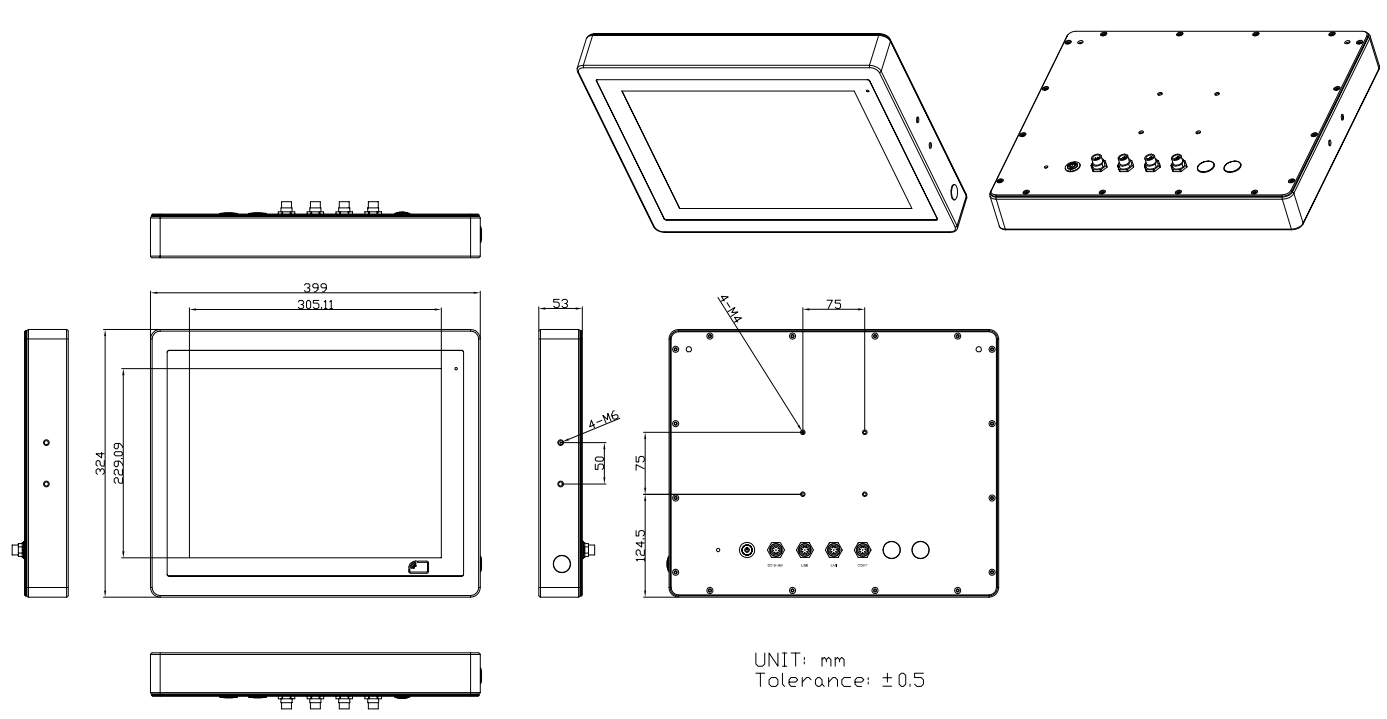

Mechanical
| Construction | 304 Stainless steel chassis(default), 316 Stainless steel chassis(optional) |
| Mounting | VESA Mount 75 x 75, YOKE mount option |
| IP Rating | Front Panel IP66/IP69K |
| Net Weight | 7.4kg |
Environmental
| Operating Temperature | 0~50°C |
| Certificate | CE/FCC Class A |
| Operating System Support | Windows 10 Pro/IoT, Linux, Ubuntu |
