ViTAM-924A/P

These 24″ fully-enclosed, stainless-steel, IP66/IP69K rated panel PCs enable high pressure steam jet cleaning. Employing the Intel Core i3 6100U CPU, with vandal-proof 7H hardened glass, these are perfect for the food and beverage industry.

Quick Spec

Display Size

24"

Processor

Intel Core i3 6100U

RAM

4GB – 32GB

IP Rating

Fully IP66/IP69K

Touchscreen

Projected Capacitive, Resistive

OS Support

Windows 10 Pro/IoT, Linux, Ubuntu

Mounting Type

VESA/YOKE

Need Help? Contact Us


01462 374102

[email protected]
  • 24” Industrial Compact Size Panel PC
  • Stainless-Steel Bezel
  • Fully Enclosed Touch Screen with Fanless Design
  • DC 9~36V Wide-Ranging Power Input
  • Intel Core i3 6100U CPU built-in
  • Up to 32GB RAM
  • Fully IP66/IP69K Compliant Panel

ViTAM-924A

System
CPU Onboard Intel Core i3 6100U Processor
Memory Onboard 4GB DDR4 up to 16GB
I/O Port
USB 1 x M12 8-pin for USB 2.0 with waterproof cover and chain
Serial/Parallel 1 x M12 8-pin COM1, RS-232/422/485, default RS-232, with
waterproof cover and chain
LAN 1 x M12 8-pin for LAN with waterproof cover and chain
Power Connector
  • 1 x M12 3-pin for DC power with waterproof cover and chain
  • 1 x Power switch on the side
Option
  • 2 x optional blank M12 connector with waterproof cover and chain
    for selecting two from the following options:
  • 2 x USB 2.0
  • 1 x USB 3.0
  • 1 x LAN (POE for option)
  • 1 x COM
  • 1 x CAN
Storage
HDD 1 x 2.5″ SATA3 HDD
Expansion
Expansion slot
  • 1 x Mini-PCIe slot for 4G/5G module
  • 1 x M.2 E-Key 2230 for WiFi/BT module
  • 1 x Nano SIM slot
RFID Module RFID module design on the front side(optional)
Display based on standard display, high brightness option see datasheet
Display Type 23.8″ TFT-LCD
Max. Resolution 1920 x 1080
Touch Screen
Type Projected Capacitive / Glass
Light Transmission (%) over 90%
Power
Power Input DC 9~36V

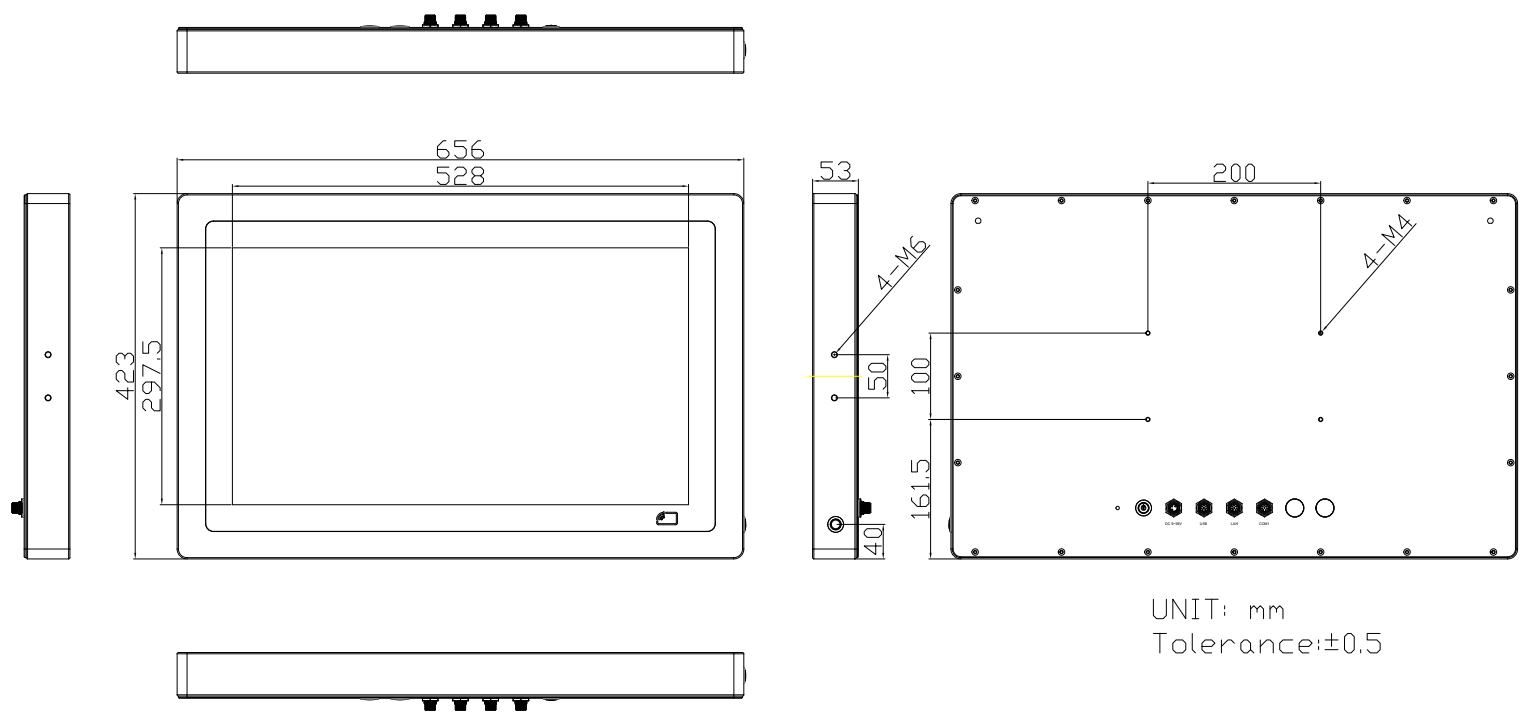

Mechanical
Construction 304 Stainless steel chassis(default), 316 Stainless steel chassis(optional)
Mounting VESA Mount 200 x 100, YOKE mount option
IP Rating Fully IP66/IP69K
Net Weight 12.6kg
Environmental
Operating Temperature 0~50°C
Certificate CE/FCC Class A
Operating System Support Windows 10 Pro/IoT, Linux, Ubuntu

ViTAM-924APGH_V1.4.pdf
