ViTAM-924B/P

These 24″ fully-enclosed, stainless-steel, IP66/IP69K rated panel PCs enable high pressure steam jet cleaning. Employing the Intel Core i3 8145UE CPU, with vandal-proof 7H hardened glass, these are perfect for the food and beverage industry.

Categories: Fully IP rated Panel PCs, Industrial, Panel PCs

Quick Spec

Display Size	24"
Processor	Intel Core i3 8145UE
RAM	4GB – 32GB
IP Rating	Fully IP66/IP69K
Touchscreen	Projected Capacitive, Resistive
OS Support	Windows 10 Pro/IoT, Windows 11 Pro/IoT, Linux, Ubuntu
Mounting Type	VESA/YOKE

Datasheet

ViTAM-924BPGH_V1.0.pdf

Request a Quote Back to Product

Need Help? Contact Us

01462 374102
[email protected]

24” Industrial Compact Size Panel PC
Stainless-Steel Bezel
Fully Enclosed Touch Screen with Fanless Design
DC 9~36V Wide-Ranging Power Input
Intel Core i3 8145UE CPU built-in
Up to 32GB RAM
Fully IP66/IP69K Compliant Panel
Supports TPM2.0 Hardware Security

System

CPU	Onboard Intel Core i3 8145UE Processor
Memory	Onboard 4GB DDR4 up to 32GB

I/O Port

USB	1 x M12 8-pin for USB 2.0 with waterproof cover and chain
Serial/Parallel	1 x M12 8-pin COM1, RS-232/422/485, default RS-232, with waterproof cover and chain
LAN	1 x M12 8-pin for LAN with waterproof cover and chain
Power Connector	1 x M12 3-pin for DC power with waterproof cover and chain 1 x Power switch on the rear
Option	2 x optional blank M12 connector with waterproof cover and chain for selecting two from the following options: 2 x USB 2.0 1 x USB 3.2 Gen 1 1 x LAN 1 x COM 1 x CAN

Storage

HDD	1 x 2.5″ SATA3 HDD
M.2	1 x B-Key 2280 (PCIe as default, SATA select by BIOS) for SSD

Expansion

Expansion slot	1 x Full size mSATA/mPCIe (mSATA as default, select by BIOS) 1 x NANO-SIM 1 x M.2 E-key 2230 (PCIe+USB) for optional WIFI/BT module
RFID Module	RFID module design on the front side(optional)
Display	based on standard display, high brightness option see datasheet
Display Type	23.8″ TFT-LCD
Max. Resolution	1920 x 1080

Touch Screen

Type	Projected Capacitive / Resistive / Glass
Light Transmission (%)	Resistive over 80% PCAP over 90%

Power

Power Input

DC 9~36V

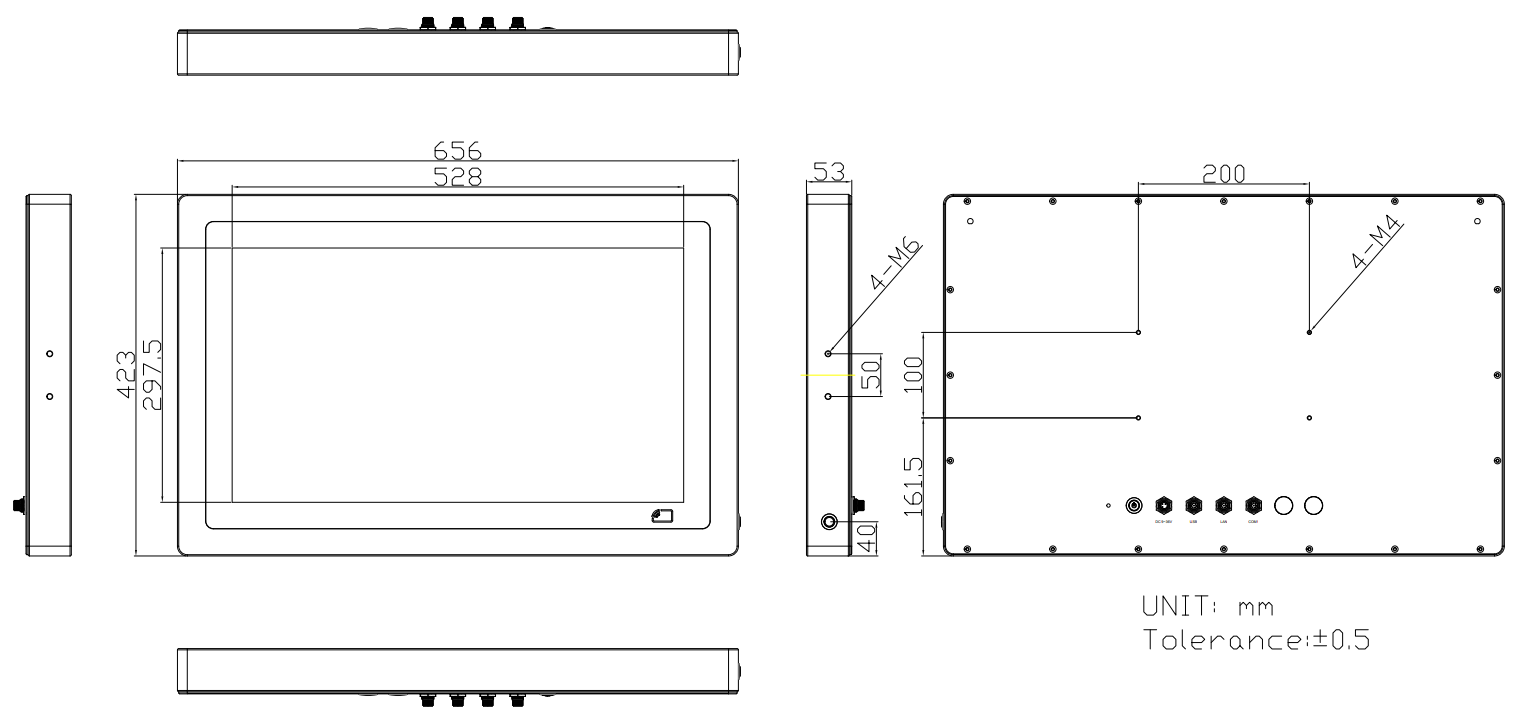

Mechanical

Construction	304 Stainless steel chassis(default), 316 Stainless steel chassis(optional)
Mounting	VESA Mount 200 x 100, YOKE mount option
IP Rating	Fully IP66/IP69K
Net Weight	13kg

Environmental

Operating Temperature	0~50°C
Certificate	CE/FCC Class A
Operating System Support	Windows 10 Pro/IoT, Windows 11 Pro/IoT, Linux, Ubuntu
