- 10.1″ – 24″
- Intel Celeron – Intel Core i5
- Fully IP66/IP69K
- VESA/YOKE
Fully IP rated Panel PCs, Industrial, Panel PCs

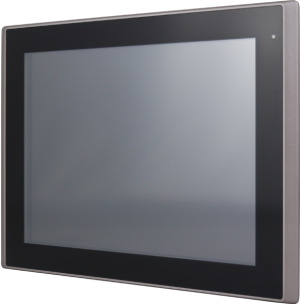

ViTAM Panel PC
$1.00

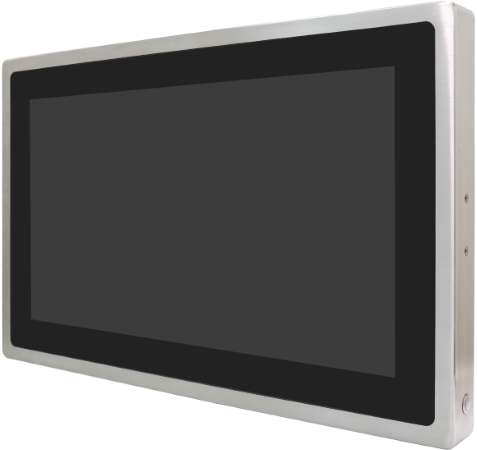

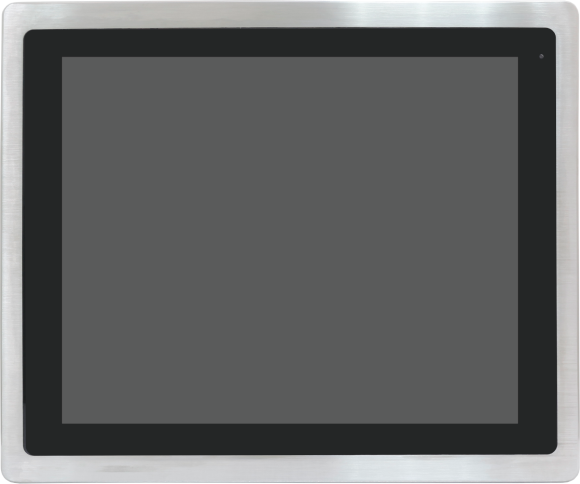

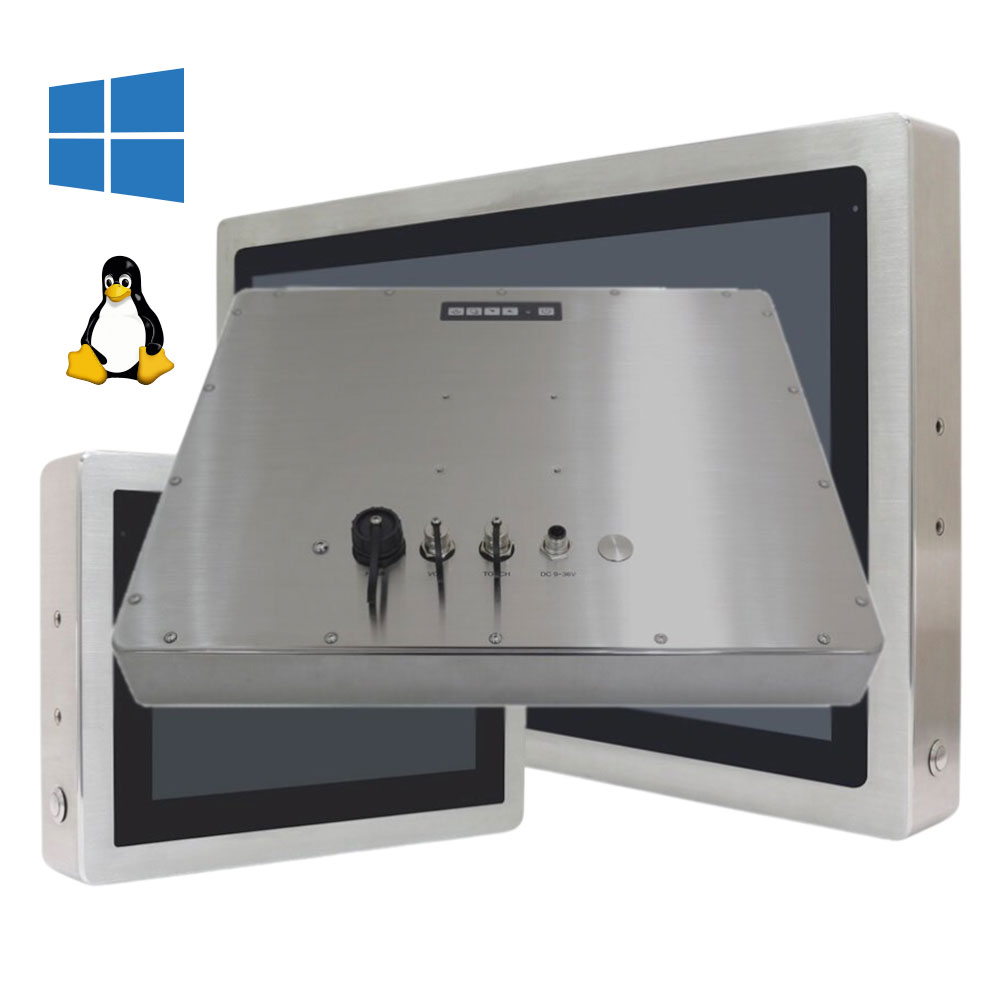

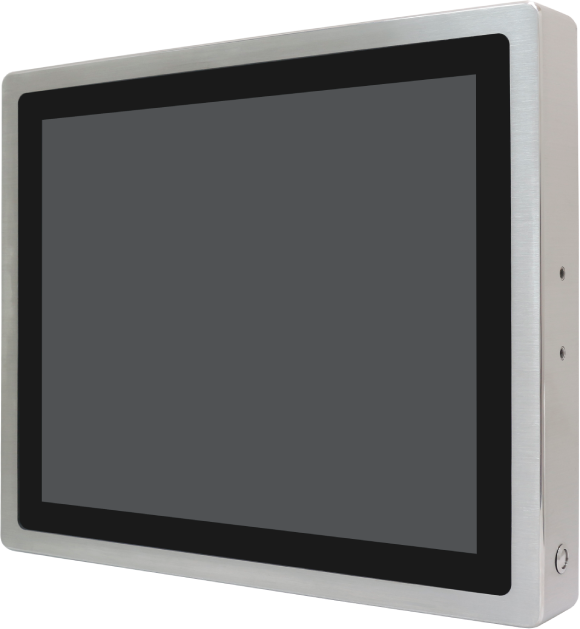

These fully-enclosed, stainless-steel, IP66/IP69K rated panel PCs enable high pressure steam jet cleaning. With vandal-proof 7H hardened glass, perfect for the food and beverage industry.
Related products
Resolution/Aspect Ratio & Environment
The ViTAM range is available in a wide range of aspect ratios and resolutions to support the needs of new 16:9/16:10 and historic 4:3 applications. From 10.1”-24” screen sizes, with varying different resolutions up to 1920 x 1080, we have something to suit every need. Constructed with 304 grade stainless-steel (316L upgrade available), these fully enclosed IP66/69K rated systems are fanless, making them perfect for harsh environments such as the food and beverage industry. The ViTAM range is manufactured to the highest standards, with a focus on reliability and longevity. All systems are supplied with an M12 AC/DC PSU but support 9-36v DC power input if a supply is already present.
I/O & Mounting

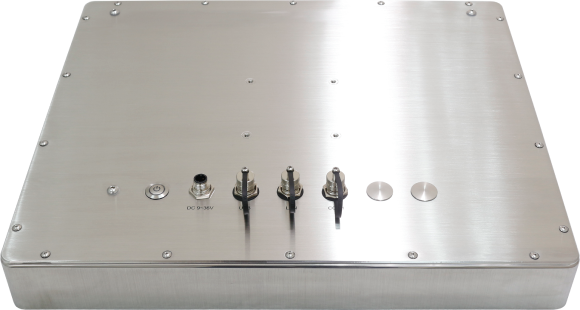

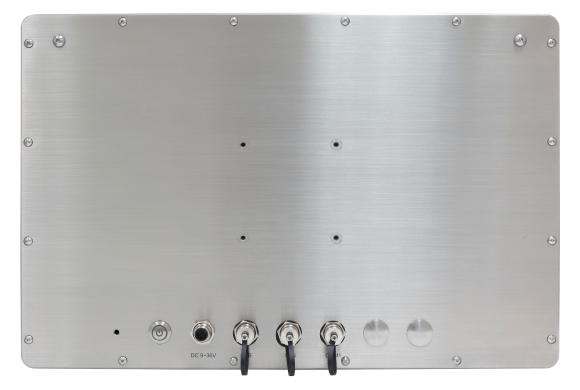

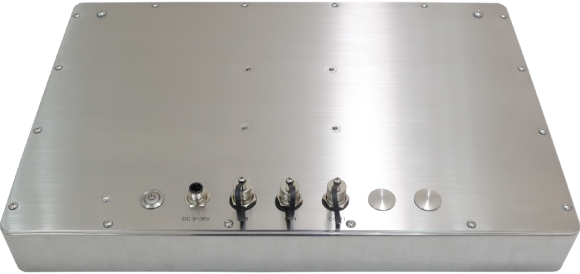

All sizes feature USB, LAN, and serial connections at the back of the unit via waterproof M12 connectors. Located on the rear, there will also be space for additional M12 connectors if required. As standard, an M12 USB Y cable is provided with 2 x female type A ports ready for device input. The ViTAM is compatible with both YOKE and VESA mounting to allow for seamless integration in any environment. Depending on unit size, the VESA options will be 75×75, 100×100 or 200×100 to conform with universal VESA brackets. DSL stock stainless-steel VESA wall mount brackets up to 100×100 available for next day dispatch.
Processor
There are a wide range of processor options available to meet the demand of the application. These are all Intel based CPUs ranging from a Quad Core Celeron, to an 8th Gen Core i5. All low power systems are available in 10.1”-24”, whereas the Intel Core i3/i5 systems start at 15” due to heat generation and passive cooling.
